軸承支撐 - 公制

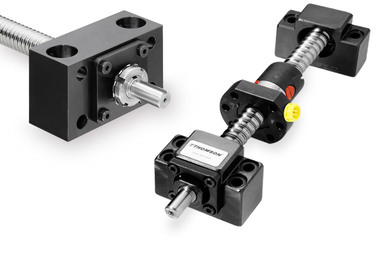

Thomson軸承支撐是Thomson滾珠絲杠公制組件簡便安裝的整套工具。由堅固的鋼材制成，為窄型緊湊設計。有帶雙角度接觸軸承或浮式徑向軸承的法蘭安裝與基礎安裝可選。所有Thomson軸承支撐均有現貨供應，經過預裝配，可即時安裝。

產品介紹

讓 Thomson 幫您做出選擇！

Linear MOTIONEERING^® Ball & Lead Screw Sizing & Selection Tool >

規格:

公制滾珠絲杠
直徑	BK	BF	FK	FF	MK	WK	QK	QF
12	X	X	X	X	X		X	X
16	X	X	X	X	X		X	X
20	X	X	X	X	X		X	X
25	X	X	X	X	X	X	X	X
32	X	X	X	X	X	X	X	X
40	X	X	X	X	X	X	X	X
50	X	X	?????????	????????		X	X	X
63	????????	?????????	????????	????????			X	X

規格:

英制系列滾珠絲杠
直徑 x 導程	BK	BF	FK	FF	MK	WK	QK	QF
0.500 x 0.200 0.500 x 0.500	X	X	X	X	X		X	X
0.631 x 0.200 0.631 x 1.000	X	X	X	X	X		X	X
0.750 x 0.200 0.750 x 0.500	X	X	X	X	X		X	X
0.875 x 0.200	X	X	X	X	X	X	X	X
1.000 x 0.200 1.000 x 0.500 1.000 x 1.000 1.171 x 0.413	X	X	X	X	X	X	X	X
1.150 x 0.200 1.250 x 0.200 1.250 x 0.250 1.250 x 0.500	X	X	X	X	X	X	X	X
1.500 x 0.200 1.500 x 0.250	X	X	X	X	X	X	X	X
1.500 x 0.473	X	X	X	X	X	X	X	X
1.500 x 0.500	X	X	X	X	X	X	X	X
1.500 x 1.000	X	X	X	X	X	X	X	X
1.500 x 1.875 1.500 x 2.000	X	X	X	X	X	X	X	X
1.750 x 0.200	X	X			X	X	X	X
2.000 x 0.200 2.000 x 0.500 2.000 x 1.000 2.250 x 0.500 2.250 x 1.000						X	X	X
2.500 x 0.250 2.500 x 0.500 2.500 x 1.000						X	X	X

軸承支撐概覽

由堅固的鋼結構
窄型、緊湊設計
基礎或法蘭安裝配置
預裝配的可隨時安裝
有現成產品
