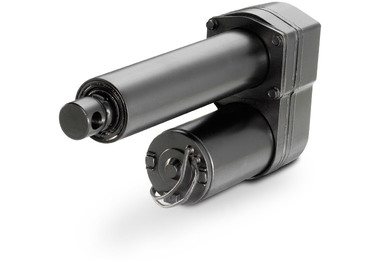

Electrak GX 電動推桿

ELECTRAK GX電動推桿

Electrak GX電動推桿配備堅固的絲杠組件，適合需要高達2000 lbf(9 kN)負載能力的應用，而扭簧保持制動器或防逆向驅動ACME螺母（取決于所選的額定負載）可在電動推桿停用時將負載保持在適當位置。擁有前沿的定制化水平，適于末端安裝的各種標準選件以及契合您應用的多種行程長度。

產品介紹

規格

Performance Specifications Acme Screw Ball Screw
Input Voltages: VDC 12, 24, 36. 48, 90
Input Voltages: VAC 115, 230, 440
Max Stroke Length: mm (in) 610 (24.0)
Max Dynamic Load:  N (lbs) 2250 (500) 6800 (2000)
Max Static Load:  N (lbs) 11350 (2550) 18000 (4050)
Max No-Load Speed: mm/s (in/s) 54 (2.1) 61 (2.4)
Max Full-Load Speed: mm/s (in/s) 32 (1.26)  37 (1.4)
Full load duty cycle @ 25ºC (77ºF) 25%
Operating temperature:  ºC (ºF) -25 to +65 (-15 to +150)
Protection Class: Standard (optional) IP67
Compatible Controls Varies per model
Use our Product Selector for proper selection

Electrak GX特性

  • Stainless steel extension tube
  • Overload clutch protection for mid/end of stroke
  • Auto reset thermal switch for motor protection
  • Load holding brake with automatic activation
  • Rugged spur gearing
  • Lifetime gear lubrication
  • Self-locking acme screw design
  • Protective seal
  • Clevis mounting

Electrak GX選件

  • Potentiometer
  • Manual override
  • Alternate end mounting options
  • Connector options

瀏覽Electrak GX零件編號
CAD模型
Electrak GX Series Installation & Operation Manual 730 KB Email
